Level Switch LB16M-40 for surface detection - water, oil, fuel and lubricants

Certificación CE

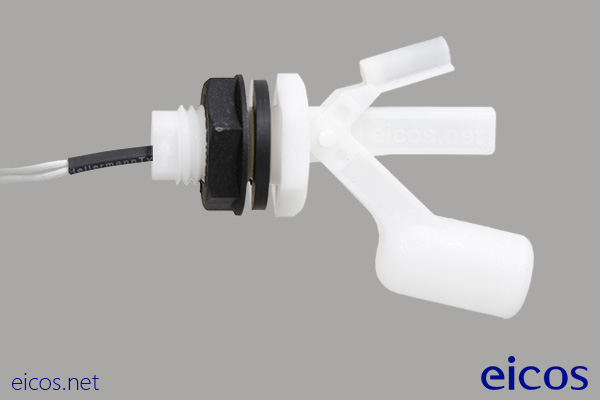

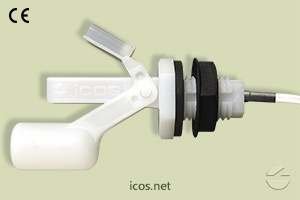

Eicos level switch LB16M-40 for liquids
Mounting of the Eicos level switch LB16M-40
Dimensions of the level switch LB16M-40

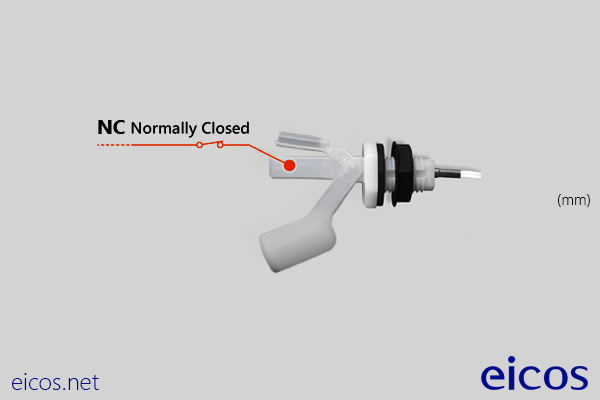

NC installation of the level switch LB16M-40

1 — 9 pcs.

US$ 21.70by piece

10 — 99 pcs.

US$ 17.30by piece

+ 100 pcs.

US$ 14.40by piece

VAT not included

In stock
Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

With Eicos level switch LB16M-40, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for liquids level control at tank's surface, such as water, oil, fuel and lubricants.

The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the internal side of the tank in Ø16mm hole. Exclusive installation in surface for detection of maximum level.

Output connection by 40cm wire.

Technical Specifications

  • Material: POM - Polyacetal (FDA approved) PA hex nut
  • Maximum operating pressure: -
  • Operating temperature range: -10°C to 100°C
  • Color: White
  • Liquid minimum density (SG): 0.65
  • Weight: 30g
  •
  • Output: On/Off
  • Switch: NC - SPST
  • Output connection: Wire 2 x 0.5mm² x 40cm
  • Enclosure rating: IP66
  •
  • Mounting: Internal side in Ø16mm hole
  • Sealing: NBR (nitrilic rubber) gasket
  • Maximum wall thickness: 9mm
  • Minimum radius in cylindric tank: 150mm
  •
  • Warranty: 2 years

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current Peak Current
110Vac 20VA 0.2A 0.5A @20ms
220Vac 20VA 0.1A 0.5A @20ms
5Vdc 2.5W 0.5A 1A @20ms
12Vdc 5W 0.5A 1A @20ms
24Vdc 10W 0.5A 1A @20ms
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms

24Vac: NOT recomended

Datasheets

Datasheet and Installation Guide
