Level Switch LA26M-40 for acid tanks and chemical products

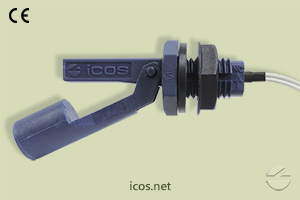

Certificación CE

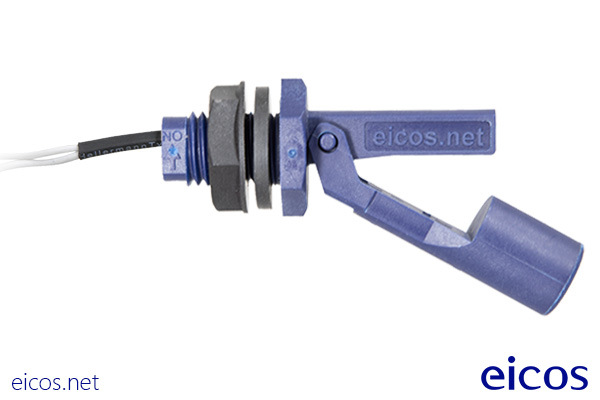

Eicos level switch LA26M-40 for liquids"

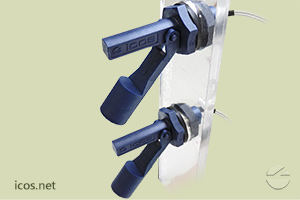

Mounting of the Eicos level switch LA26M-40

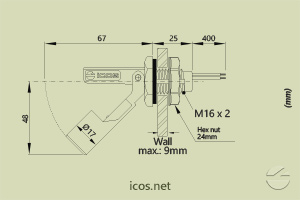

Dimensions of the level switch LA26M-40

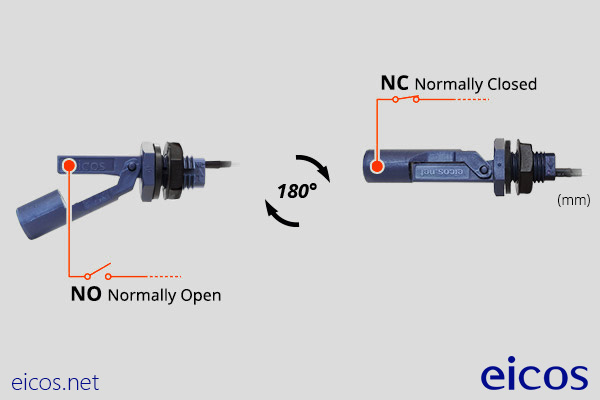

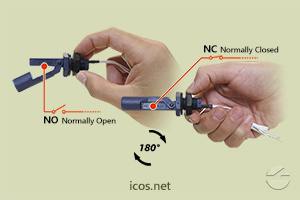

NO or NC installation of the level switch LA26M-40

1 — 9 pcs.

US$ 14.00by piece

10 — 99 pcs.

US$ 11.20by piece

+ 100 pcs.

US$ 9.30by piece

VAT not included

In stock
Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

With Eicos level switch LA26M-40, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for level control of chemical products.

The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the internal side of the tank in Ø16mm hole. For each liquid level to detect, is needed to install a level switch.

Output connection by 40cm wire.

Not suitable for fuel.

Technical Specifications

  • Material: PP - Polypropylene* PA hex nut
  • Maximum operating pressure: 2bar
  • Operating temperature range: -10°C to 100°C
  • Color: Dark blue
  • Liquid minimum density (SG): 0.68
  • Weight: 30g
  •
  • Output: On/Off
  • Switch: NO/NC - SPST
  • Output connection: Wire 2 x 0.5mm² x 40cm
  • Enclosure rating: IP66
  •
  • Mounting: Internal side in Ø16mm hole
  • Sealing: NBR (nitrilic rubber) gasket
  • Maximum wall thickness: 9mm
  • Minimum radius in cylindric tank: 150mm
  •
  • Warranty: 2 years

* Although the Polypropylene supports various chemicals, depending on the product requires preliminary tests to confirm compatibility.

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current Peak Current
110Vac 20VA 0.2A 0.5A @20ms
220Vac 20VA 0.1A 0.5A @20ms
5Vdc 2.5W 0.5A 1A @20ms
12Vdc 5W 0.5A 1A @20ms
24Vdc 10W 0.5A 1A @20ms
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms

24Vac: NOT recomended
