Level Switch LA16M-40 for water tank, fuels and lubricant

Certificación CE

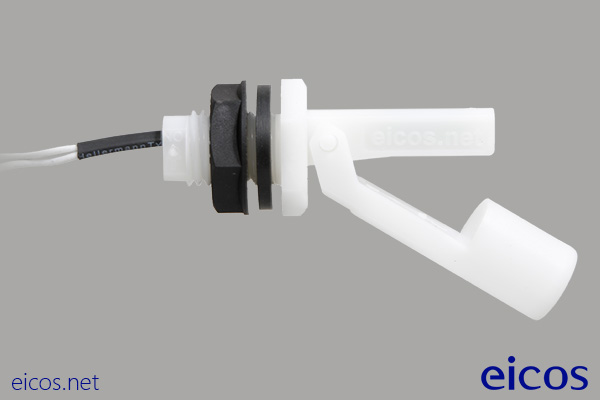

Eicos level switch LA16M-40 for liquids
Mounting of the Eicos level switch LA16M-40
Dimensions of the level switch LA16M-40

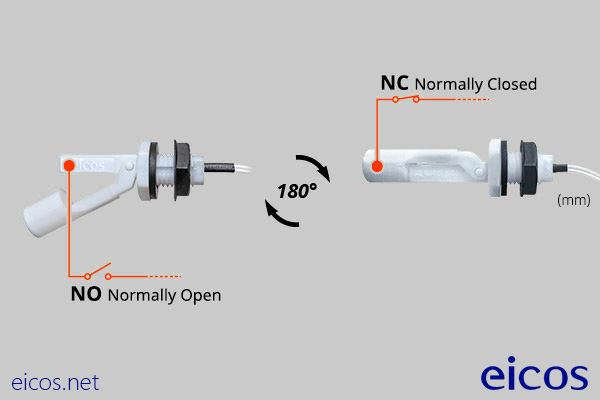

NO or NC installation of the level switch LA16M-40

1 — 9 pcs.

US$ 17.50by piece

10 — 99 pcs.

US$ 14.00by piece

+ 100 pcs.

US$ 11.70by piece

VAT not included

In stock
Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

With Eicos level switch LA16M-40, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for level control of water, oil, fuel and lubricants.

The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the internal side of the tank in Ø16mm hole. For each liquid level to detect, is needed to install a level switch.

Output connection by 40cm wire.

Technical Specifications

  • Material: POM - Polyacetal (FDA approved) PA hex nut
  • Maximum operating pressure: 2bar
  • Operating temperature range: -10°C to 100°C
  • Color: White
  • Liquid minimum density (SG): 0.76
  • Weight: 30g
  •
  • Output: On/Off
  • Switch: NO/NC - SPST
  • Output connection: Wire 2 x 0.5mm² x 40cm
  • Enclosure rating: IP66
  •
  • Mounting: Internal side in Ø16mm hole
  • Sealing: NBR (nitrilic rubber) gasket
  • Maximum wall thickness: 9mm
  • Minimum radius in cylindric tank: 150mm
  •
  • Warranty: 2 years

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current Peak Current
110Vac 20VA 0.2A 0.5A @20ms
220Vac 20VA 0.1A 0.5A @20ms
5Vdc 2.5W 0.5A 1A @20ms
12Vdc 5W 0.5A 1A @20ms
24Vdc 10W 0.5A 1A @20ms
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms

24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.

Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
