Level Switch LA12N-40 for level control of water, fuels and lubricants

Certificación CE
Eicos Level Switch LA12N-40 for liquids

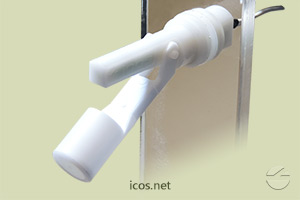

Mounting of the Eicos level switch LA12N-40
Dimensions of the level switch LA12N-40
NO or NC installation of the level switch LA12N-40

1 — 9 pcs.

US$ 14.00by piece

10 — 99 pcs.

US$ 11.20by piece

+ 100 pcs.

US$ 9.30by piece

VAT not included

In stock
Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

With Eicos level switch LA12N-40, you can control the level of liquid at the point (height) that it is installed in the tank. It is ideal for level control of water, oil, fuel and lubricants.

The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the external side of the tank in 1/2"NPT thread. For each liquid level to detect, is needed to install a level switch.

Output connection by 40cm wire.

Technical Specifications

  • Material: POM - Polyacetal (FDA approved)
  • Maximum operating pressure: 2bar
  • Operating temperature range: -10°C to 100°C
  • Color: White
  • Liquid minimum density (SG): 0.76
  • Weight: 30g
  •
  • Output: On/Off
  • Switch: NO/NC - SPST
  • Output connection: Wire 2 x 0.5mm² x 40cm
  • Enclosure rating: IP66
  •
  • Mounting: External side in 1/2"NPT thread
  • Sealing: Sealant tape
  • Maximum wall thickness: 18mm
  • Minimum radius in cylindric tank: -
  •
  • Warranty: 2 years

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current Peak Current
110Vac 20VA 0.2A 0.5A @20ms
220Vac 20VA 0.1A 0.5A @20ms
5Vdc 2.5W 0.5A 1A @20ms
12Vdc 5W 0.5A 1A @20ms
24Vdc 10W 0.5A 1A @20ms
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms

24Vac: NOT recomended

Datasheets

Datasheet and Installation Guide
