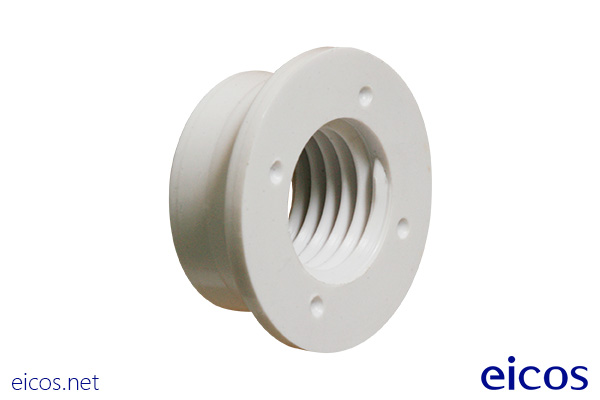

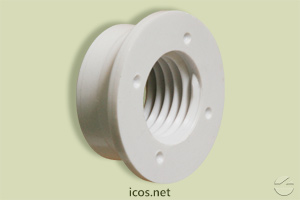

M16x25 PVC Adapter for level switches mounting in PVC pipe

Technical Specifications

For mounting the Level Switch in PVC pipes and flange.

• Material: PVC

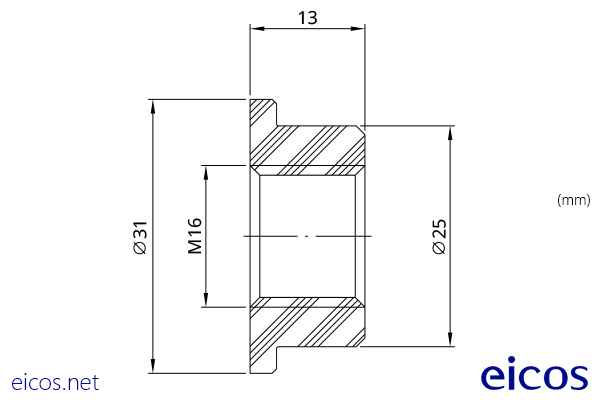

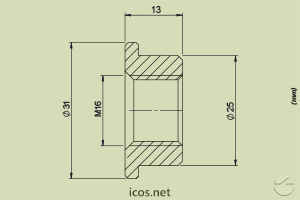

• Flange: M16

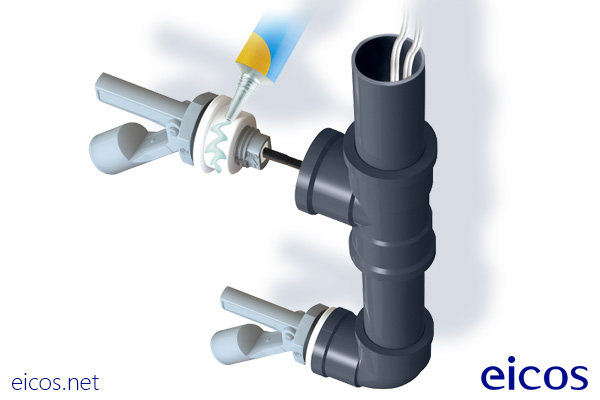

• Fixing the pipe: Adhesive for PVC
• Weight: 9g
•

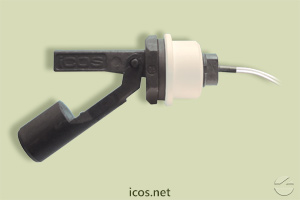

• Mounting: Together with PVC pipe and Eicos level switches below:
  •
  • Level Switch LA16M-40
    (Side mounting - water, fuels and lubricants)
  • Level Switch LA26M-40
    (Side mounting - acids and chemicals)
  • Level Switch LA36M-40
    (Side mounting - liquids up to 125°C)
  •
  • Level Switch LB16M-40
    (Surface mounting - water, fuels and lubricants)
  • Level Switch LB26M-40
    (Surface mounting - acids and chemicals)
  •

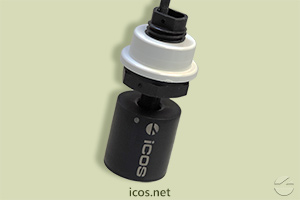

  • Level Switch LC26M-40
    (Vertical mounting - acids and chemicals)
  • Level Switch LC36M-40
    (Vertical mounting - water, oils and fuels)
