Level Switch LV42A-40 for mounting in PVC pipes

Certificación CE

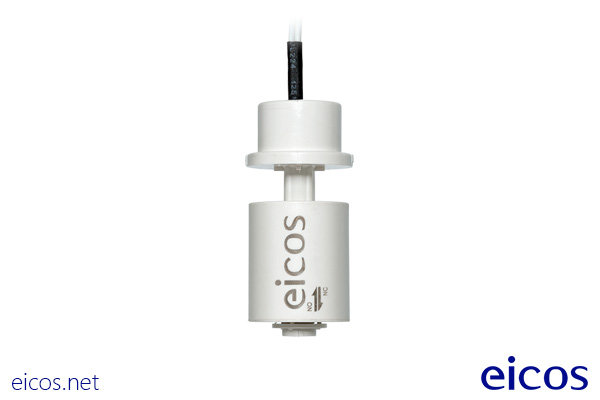

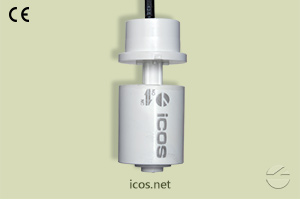

Eicos level switch LV42A-40 for narrow passages and top mounting
Level switch for level control of liquids LV42A-40

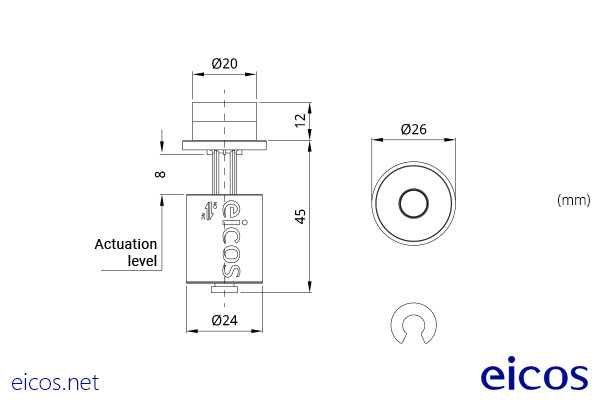

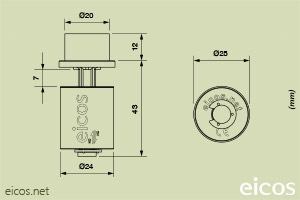

Dimensions of the level switch LV42A-40

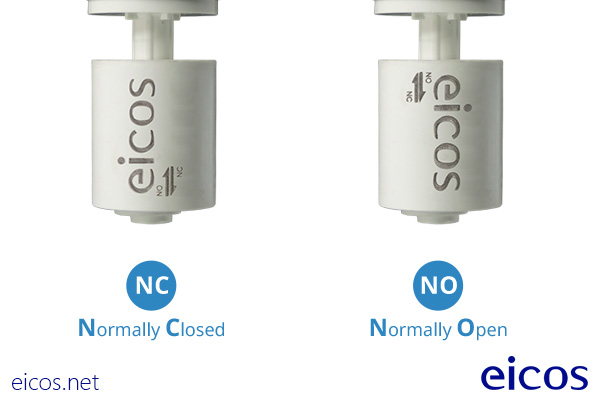

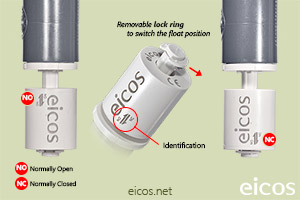

NO or NC installation of the level switch LV42A-40

1 — 9 pcs.

US$ 18.90by piece

10 — 99 pcs.

US$ 16.50by piece

+ 100 pcs.

US$ 14.20by piece

VAT not included

In stock
Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

With Eicos level switch LV42A-40 (45mm length), it is possible to control the level of liquids in tanks with narrow passages and you decide the level points to detect in the tank using pipes and PVC accessories*. This sensor is 100% PVC and has high compatibility with various types of liquids, such water, oil, fuel and chemical products.

The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Side mounting at multiple points.

Mounting with PVC pipes, output connection by 40cm wire.

*Tip: Use the 20x20 Vertical PVC Adapter for more detection points of level.

Technical Specifications

  • Material: PVC - Polyvinyl Chloride
  • Maximum operating pressure: 2bar
  • Operating temperature range: 5°C to 50°C
  • Color: White
  • Liquid minimum density (SG): 0.60
  • Weight: 22g
  •
  • Output: On/Off
  • Switch: NO/NC - SPST
  • Output connection: Wire 2 x 0.5mm² x 40cm
  • Enclosure rating: IP66
  •
  • Mounting: Vertical with PVC pipes
  • Maximum wall thickness: -
  •
  • Warranty: 2 years

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current Peak Current
110Vac 20VA 0.2A 0.5A @20ms
220Vac 20VA 0.1A 0.5A @20ms
5Vdc 2.5W 0.5A 1A @20ms
12Vdc 5W 0.5A 1A @20ms
24Vdc 10W 0.5A 1A @20ms
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
    • Peak Current: 0.5A @20ms
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A
    • Peak Current: 1A @20ms

24Vac: NOT recomended

Datasheets

Datasheet and Installation Guide
