Level Switch LC36-M12 for water, oil, fuels and M12 output connection

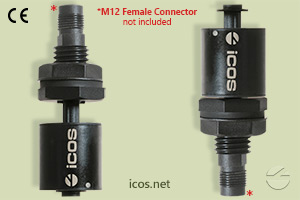

Eicos level switch LC36-M12 for liquids

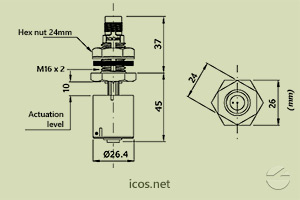

Dimensions of the level switch LC36-M12
NO or NC installation of the level switch LC36-M12

1 — 9 pcs.

US$ 25.50by piece

10 — 99 pcs.

US$ 20.30by piece

+ 100 pcs.

US$ 17.00by piece

VAT not included

In stock
Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

With 45mm rod length, the Eicos level switch LC36-M12 detects the level of water or other liquid at the top (maximum level) or bottom (minimum level) of the tank. It is ideal for temperatures up to 90°C.

The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the internal side of the tank in Ø16mm hole.

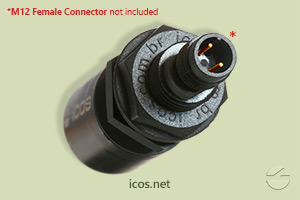

Output by male M12 connection (female M12 connector not included).

Technical Specifications

  • Material: PPA - Polyphthalamide PA hex nut
  • Maximum operating pressure: 2bar
  • Operating temperature range: -10°C to 90°C
  • Color: Black
  • Liquid minimum density (SG): 0.70
  • Weight: 30g
  •
  • Output: On/Off
  • Switch: NO/NC - SPST
  • Output connection: Male M12 plug (2 pins)
    Female M12 connector NOT included
  • Enclosure rating: IP66
  •
  • Mounting: Internal vertical in Ø16mm hole
  • Sealing: NBR (nitrilic rubber) gasket
  • Maximum wall thickness: 9mm
  •
  • Warranty: 2 years

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current
110Vac 20VA 0.2A
220Vac 20VA 0.1A
5Vdc 2.5W 0.5A
12Vdc 5W 0.5A
24Vdc 10W 0.5A
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A

24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.

Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
