Description
The fluid flow causes the displacement of magnetic piston and closes the electrical contact of sensor (reed switch).

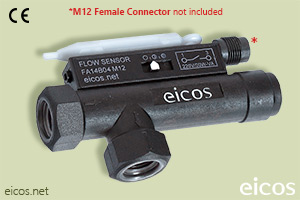

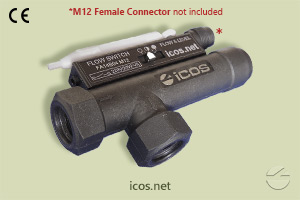

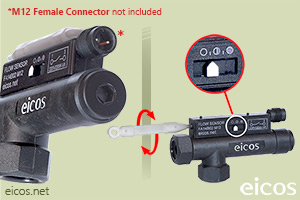

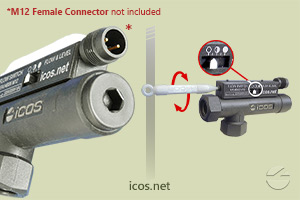

The Eicos flow switch FA14B04-M12 of 1/4"G port is ideal for low flows of oil. The sensor has a operation range that allow to adjust the ideal flow of liquid to be detected in application.

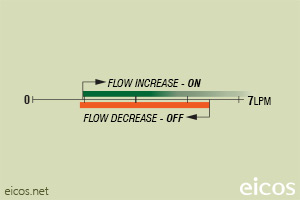

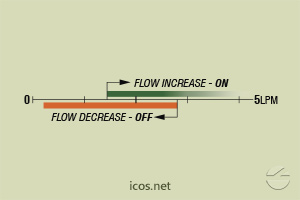

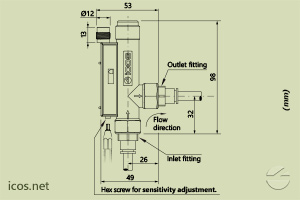

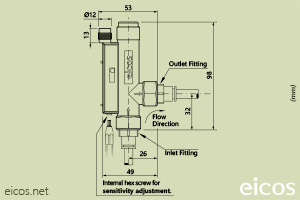

The sensor works Normally Open (NO), with ON signal when the flow (liters per minute) is higher that the sensitivity adjusted in the sensor and OFF signal when the flow decreases to bellow of adjusted.
Output connection in male M12 plug (not included with sensor).
For water applications, see the model FA14B02-M12.
Technical Specifications
- Material: PPA - Polyphthalamide
- Internal clearance: 8mm²
- Maximum operating pressure: 25bar
- Operating temperature range: 0°C to 100°C | 140°C @1h
- Spring: AISI 304 Stainless Steel
- Weight: 71g
- Output: On/Off
- Switch: NO - SPST
- Output connection: Male M12 plug (2 pins)
Female M12 connector NOT included - Enclosure rating: IP66
- Mounting: Vertical with ascending flow
- Inlet/outlet port: G 1/4" female (BSP - Parallel)
- Sealing: NBR (nitrilic rubber) O’Ring
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current | Peak Current |
| 110Vac | 20VA | 0.2A | 0.5A @20ms |
| 220Vac | 20VA | 0.1A | 0.5A @20ms |
| 5Vdc | 2.5W | 0.5A | 1A @20ms |
| 12Vdc | 5W | 0.5A | 1A @20ms |
| 24Vdc | 10W | 0.5A | 1A @20ms |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- Peak Current: 0.5A @20ms
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- Peak Current: 0.5A @20ms
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
24Vac: NOT recomended
A Snubber Filter K8 is sent with the sensor for protection of the electrical contact reed.
Datasheet and Installation Guide
- Datasheet (PDF 542KB)
- Installation Manual (PDF 767KB)
Examples of Electrical Schematics
