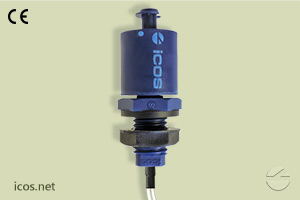

Level Switch LC26M-40 for acids, chemical and vertical mounting

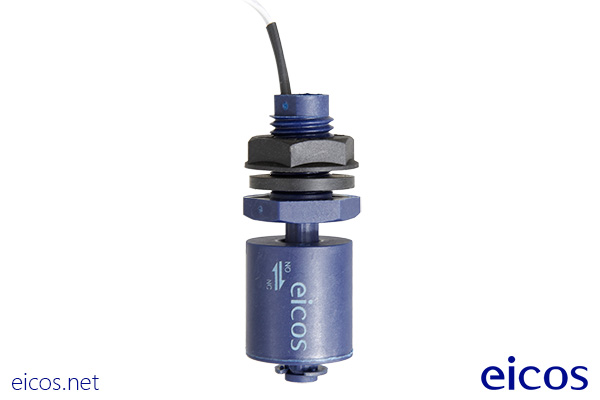

Eicos level switch LC26M-40 for liquids

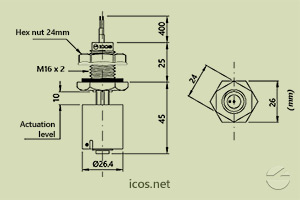

Dimensions of the level switch LC26M-40

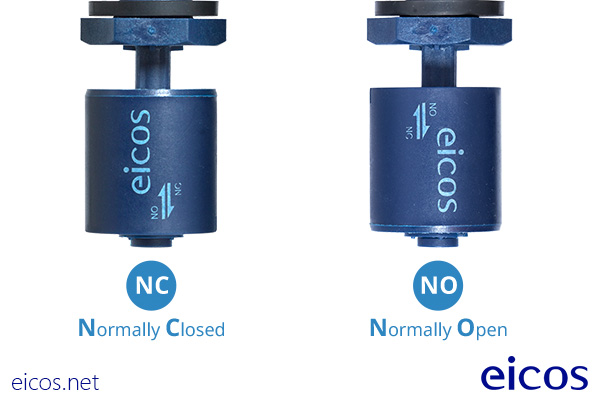

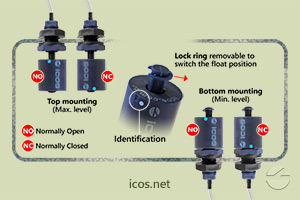

NO or NC installation of the level switch LC26M-40

1 — 9 pcs.

US$ 17.50by piece

10 — 99 pcs.

US$ 14.00by piece

+ 100 pcs.

US$ 11.70by piece

VAT not included

In stock
Overview

Description

Movement of the magnetic float opens / closes a hermetically sealed contact.

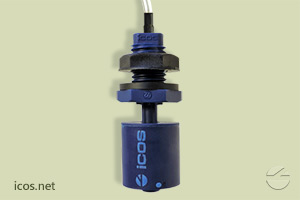

With 45mm rod length, the Eicos level switch LC26M-40 detects the level of water or other liquid at the top (maximum level) or bottom (minimum level) of the tank. It is ideal for acids and chemical products.

The sensor indicates by means of a ON/OFF signal when the level of liquid is reached. Mounting by the internal side of the tank in Ø16mm hole.

Output connection by 40cm wire.

Not suitable for fuel.

Technical Specifications

  • Material: PP - Polypropylene* PA hex nut
  • Maximum operating pressure: 2bar
  • Operating temperature range: -10°C to 90°C
  • Color: Dark blue
  • Liquid minimum density (SG): 0.70
  • Weight: 30g
  •
  • Output: On/Off
  • Switch: NO/NC - SPST
  • Output connection: Wire 2 x 0.5mm² x 40cm
  • Enclosure rating: IP66
  •
  • Mounting: Internal vertical in Ø16mm hole
  • Sealing: NBR (nitrilic rubber) gasket
  • Maximum wall thickness: 9mm
  •
  • Warranty: 2 years

* Although the Polypropylene supports various chemicals, depending on the product requires preliminary tests to confirm compatibility.

Switching Voltages

Operating Voltage Max. Switching Power Max. Switching Current
110Vac 20VA 0.2A
220Vac 20VA 0.1A
5Vdc 2.5W 0.5A
12Vdc 5W 0.5A
24Vdc 10W 0.5A
  • OPERATING VOLTAGE: 110Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.2A
  • OPERATING VOLTAGE: 220Vac
    • Max. Switching Power: 20VA
    • Max. Switching Current: 0.1A
  • OPERATING VOLTAGE: 5Vdc
    • Max. Switching Power: 2.5W
    • Max. Switching Current: 0.5A
  • OPERATING VOLTAGE: 12Vdc
    • Max. Switching Power: 5W
    • Max. Switching Current: 0.5A
  • OPERATING VOLTAGE: 24Vdc
    • Max. Switching Power: 10W
    • Max. Switching Current: 0.5A

24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.

Relay coupler (110Vac-220Vac): Use 4K7 10W resistor in series.
