Phone: Flow Switch FJ112B02 ideal for high flows of water - 1 1/2"G
1 pc.
2 — 5 pcs.
+ 6 pcs.
VAT not included
Description
The fluid flow causes the displacement of magnetic piston and closes the electrical contact of sensor (reed switch).

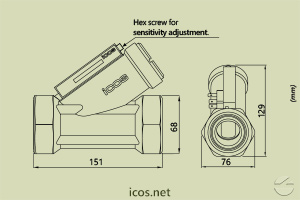

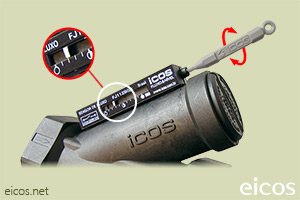

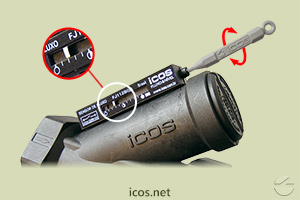

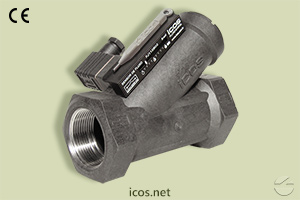

The Eicos flow switch FJ112B02 of 1 1/2"G port is ideal for high flows of water. The sensor has a operation range that allow to adjust the ideal flow of liquid to be detected in application.

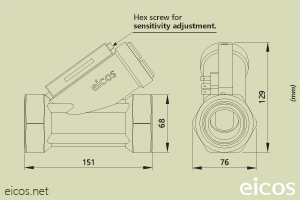

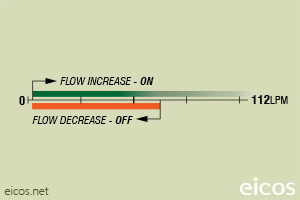

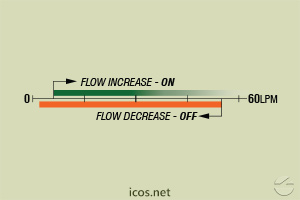

The sensor works Normally Open (NO), with ON signal when the flow (liters per minute) is higher that the sensitivity adjusted in the sensor and OFF signal when the flow decreases to bellow of adjusted.
Electrical output with DIN 43650 connector (included with sensor).
For oil applications, see the model FJ112B04.
Technical Specifications
- Material: PPA - Polyphthalamide
- Internal clearance: 680mm²
- Maximum operating pressure: 25bar
- Operating temperature range: 0°C to 100°C | 140°C @1h
- Spring: AISI 302 Stainless Steel
- Weight: 760g
- Output: On/Off
- Switch: NO - SPST
- Output connection: DIN 43650 - B Connector
- Enclosure rating: IP66
- Mounting: Horizontal or vertical with ascending flow
- Inlet/outlet port: G 1 1/2" female (BSP - Parallel)
- Sealing: NBR (nitrilic rubber) O’Ring
- Warranty: 2 years
Switching Voltages
| Operating Voltage | Max. Switching Power | Max. Switching Current | Peak Current |
| 110Vac | 20VA | 0.2A | 0.5A @20ms |
| 220Vac | 20VA | 0.1A | 0.5A @20ms |
| 5Vdc | 2.5W | 0.5A | 1A @20ms |
| 12Vdc | 5W | 0.5A | 1A @20ms |
| 24Vdc | 10W | 0.5A | 1A @20ms |
- OPERATING VOLTAGE: 110Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.2A
- Peak Current: 0.5A @20ms
- OPERATING VOLTAGE: 220Vac
- Max. Switching Power: 20VA
- Max. Switching Current: 0.1A
- Peak Current: 0.5A @20ms
- OPERATING VOLTAGE: 5Vdc
- Max. Switching Power: 2.5W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
- OPERATING VOLTAGE: 12Vdc
- Max. Switching Power: 5W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
- OPERATING VOLTAGE: 24Vdc
- Max. Switching Power: 10W
- Max. Switching Current: 0.5A
- Peak Current: 1A @20ms
24Vac: Recommended use with Schneider Coupling Relay model RSLZVA1.
A Snubber Filter K8 is sent with the sensor for protection of the electrical contact reed.
Datasheet and Installation Guide
- Datasheet (PDF 287KB)
- Installation Manual (PDF 384KB)
