KD Snubber Filter for electrical connection of Eicos sensors

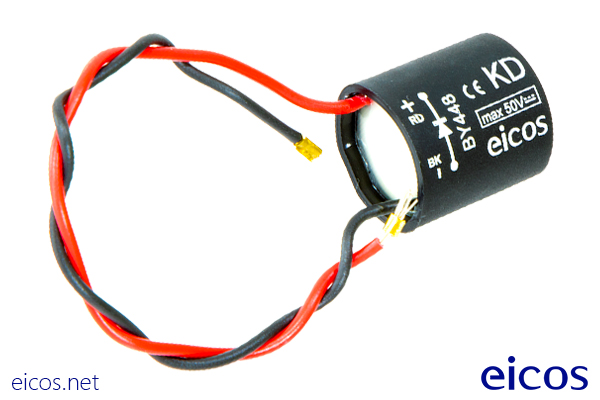

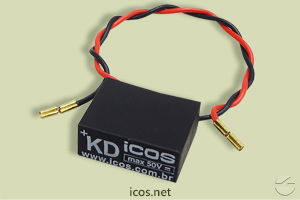

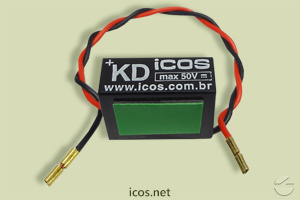

![Click to enlarge the image of Snubber Filter KD (DC) for contactors and command relays Snubber Filter KD (DC) for contactors and command relays](snubber-filter-eicos-kd.jpg)

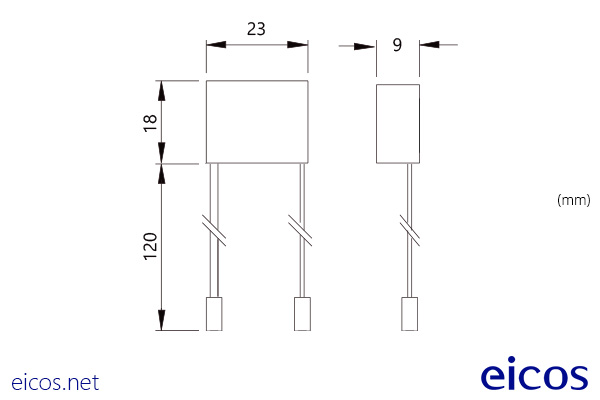

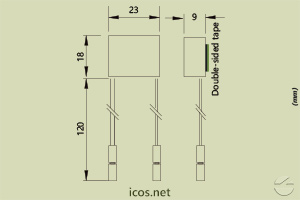

![Click to enlarge the image of Dimensions of Snubber Filter KD (DC) for contactors and command relays Dimensions of Snubber Filter KD (DC) for contactors and command relays](snubber-filter-eicos-k8-kd-dimensions.jpg)
1 pc.
US$ 6.80by piece
VAT not included
In stock
Overview
Technical Specifications
Eliminate the electrical noise caused by switching of the coils.
- For coils with power: < 80W
- Voltage: 0...24Vdc
- Weight: 6g
- Mounting: Double-sided tape
- Housing: Epoxy resin
- Current: Direct current (DC)
- Application: Contactors and command relays
![The internal components of the Snubber Filter KD for direct current (DC)](snubber-filter-eicos-elements-kd.jpg)
Datasheets
TECHNICAL DOCUMENTATION
- Technical Report (PDF 209KB)
Photos & Videos
Mounting
Wiring Diagram

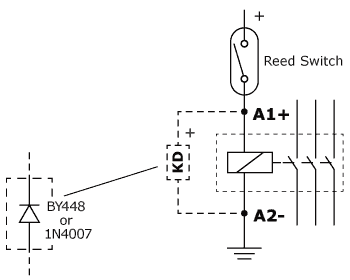

Filter KD mounted in parallel with the coil of a DC relay, increase contact life.
